WS5scan tool diagnostics
Make Toyota Model Accord Year 2004
Our cause is to used the scan tool to provided us enough information due to engine conditions and as for creating fault codes, we can discuss in group and come to conclusion to fix the problem.
This live data's show normal engine condition before the tutor create a fault in the system.
Type of infoormation PID Parameter Iden | Letters to describe it E.g TPS | Value of data | Units for data E.g Volts |
Engine Load | |||
Engine RPM | Crank S | 91 | C |
Throttle angle | TPS | Volts | |
Engine Cooling Temp | ECT | 90 | C |
Intake air temp | IAT | 65 | C |
Fuel Injection (pulse) | FI | 2.41 | ms |
Transmission select P | 00 | 00 | 00 |
Vehicle Speed | --- | -- | -- |
Oxygen sesor(s) | O2 sensor | 0.5 | volts |
Fuel Trim | Short/Long | 1.02/0.99 | % |
Idle control | Ic | on | |
Power steering condition | |||
Air conditioning | 0.05 | volt | |
Exhaust Gas (EGR) | EGR | no | % |
Fuel Evap or puge condi | MIL | yes | |
Malfunction Indicator Light | BP | 8.5 | Hz |
Trouble Codes or Fault Codes
Here is the list of codes we found on this Engines
Record any codes and what system and condition they describe in the chart below
Code number | System affected | Condition described |
03 – 02 | MAP | High voltage |
10 – 02 | IAT | High voltage |
06 – 02 | ECT | Current high input |
Find What Data Has Changed

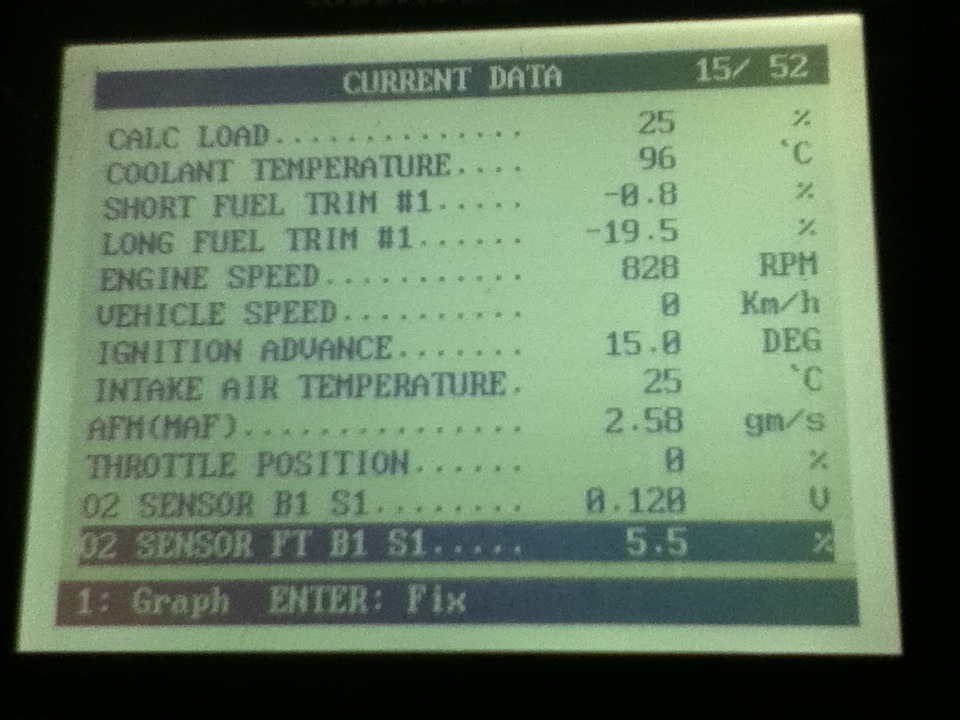

This picture shown change in the engine operation TPS is not working.
5.2 Record the PIDs that have changed below:
Type of information (PID = Parameter Identification) | Letters to describe it | Value of data | Units for data |
Intake air temperature | IAT | 16 | C |
Throttle position sensor | TPS | 0.00 | C |
Manifold Air pressure | MAP | 110 | Kpa |
Idle Air Control | IAC | 1.20 | Volts |
Visual Inspection to find fault
We found that TPS has been disconnected from its fusible link
Repair fault
We repaired it by plug the sensor back to connector than erase the codes, follow by rechecked the other sensor if were clear from the system.
Recheck Data PIDs
Recheck the data with the scan tool
Record the voltages for the PIDs related to the problem, to confirm they are back to normal
Type of information (PID = Parameter Identification) | Letters to describe it | Value of data | Units for data |
MAP Sensor | MAP | 102 | Kpa |
Idle Air Control | IAT | 60 | C |
Engine Coolant | ECT | 90 | C |
Clear Codes
Describe what you did to clear codes:
With the engine on, plug the scan tool to ECU than eraser the code.
Recheck for codes and record codes in system now:
Once the codes is clear than recheck for other codes.
Discuss the importance live data when fault finding
The live data provide detail which used to determine the engine condition, finding codes and used to compare weather this information match specification.
Explain the need for parameters when checking live data
Checking and monitor the engine condition while is running. This live data is use to compare and make conclusion base on the engine condition, this information is helpful for diagnose problems in the motor vehicle.
Discuss how a scan tool can aid you when fault finding
Very useful equipment to provide codes and other information so we can locate fault components while the engine is operating give us direction were to look for diagnosing.
